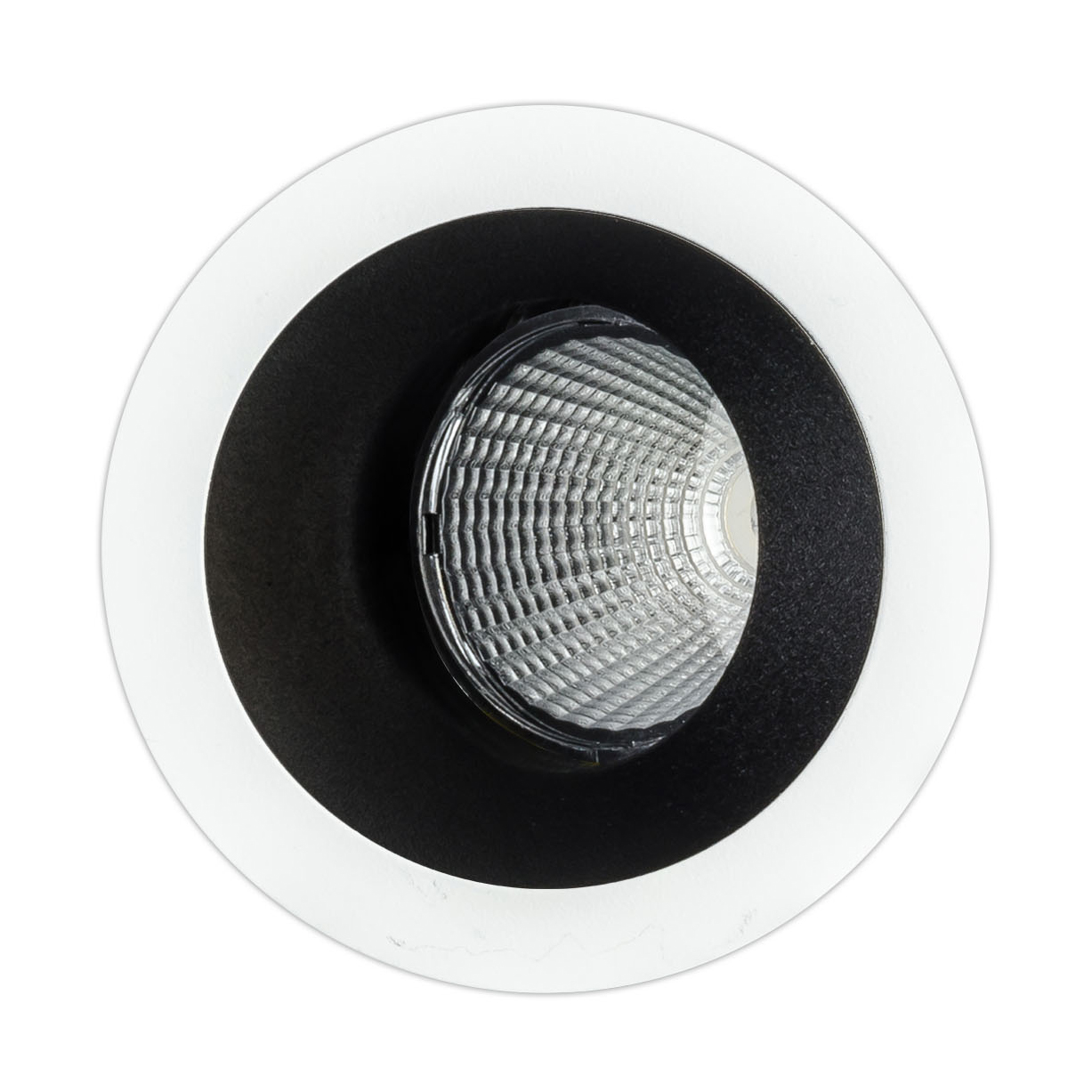

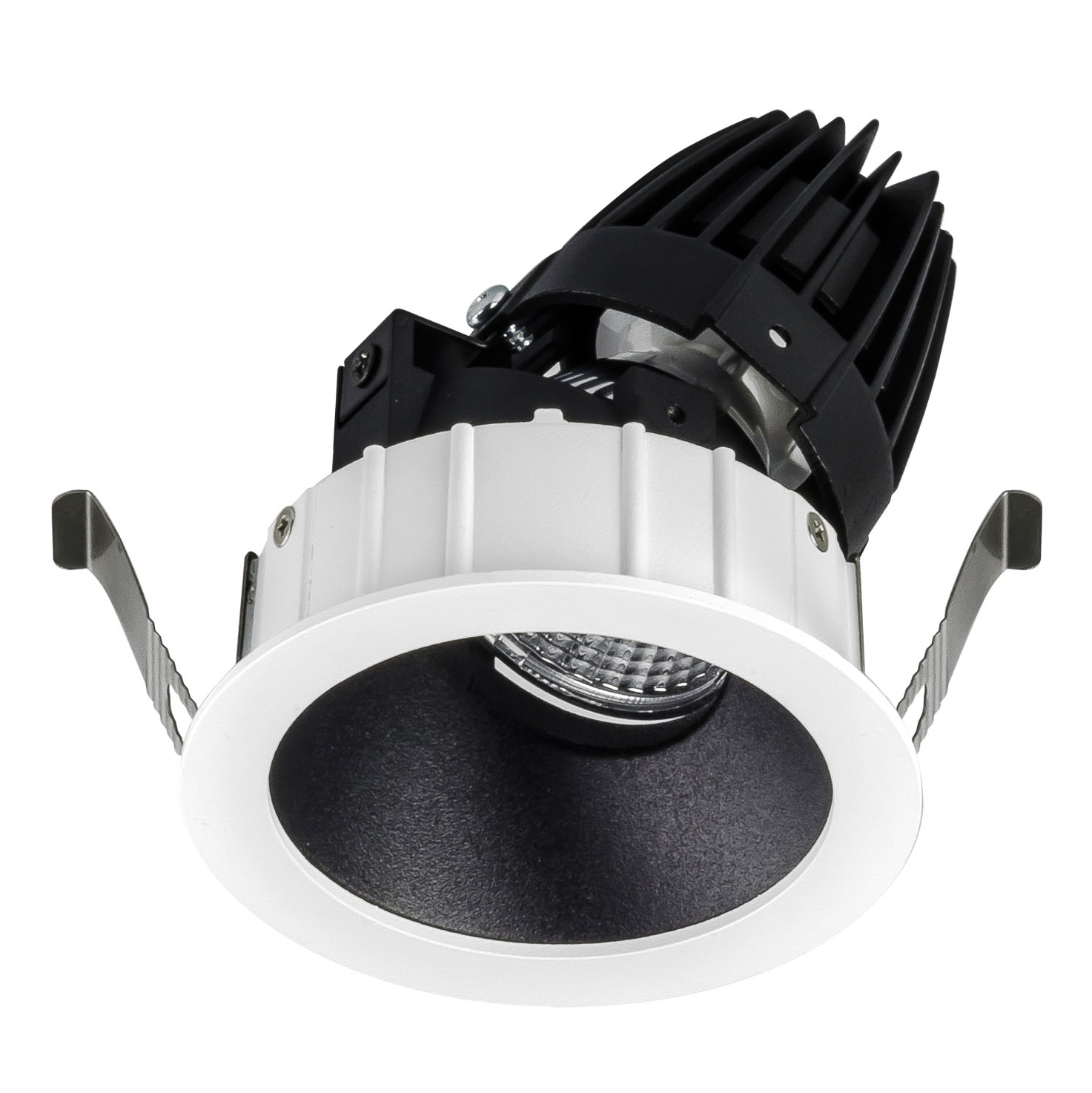

STELLAR 85R WW
RECESSED LED WALL WASHER
An 85mm diameter attractive low glare recessed tiltable wall wash LED downlight. Manufactured from die-cast aluminium with a discreet, minimal bezel and an integral IP44 protective lens.
Using the Tridonic LED engine and driver system these downlights have an efficacy of up to 116 lm/W and are available with a wide range of configurable options.
KEY FEATURES AND SPECIFICATIONS
‣ Ceiling recessed mounting

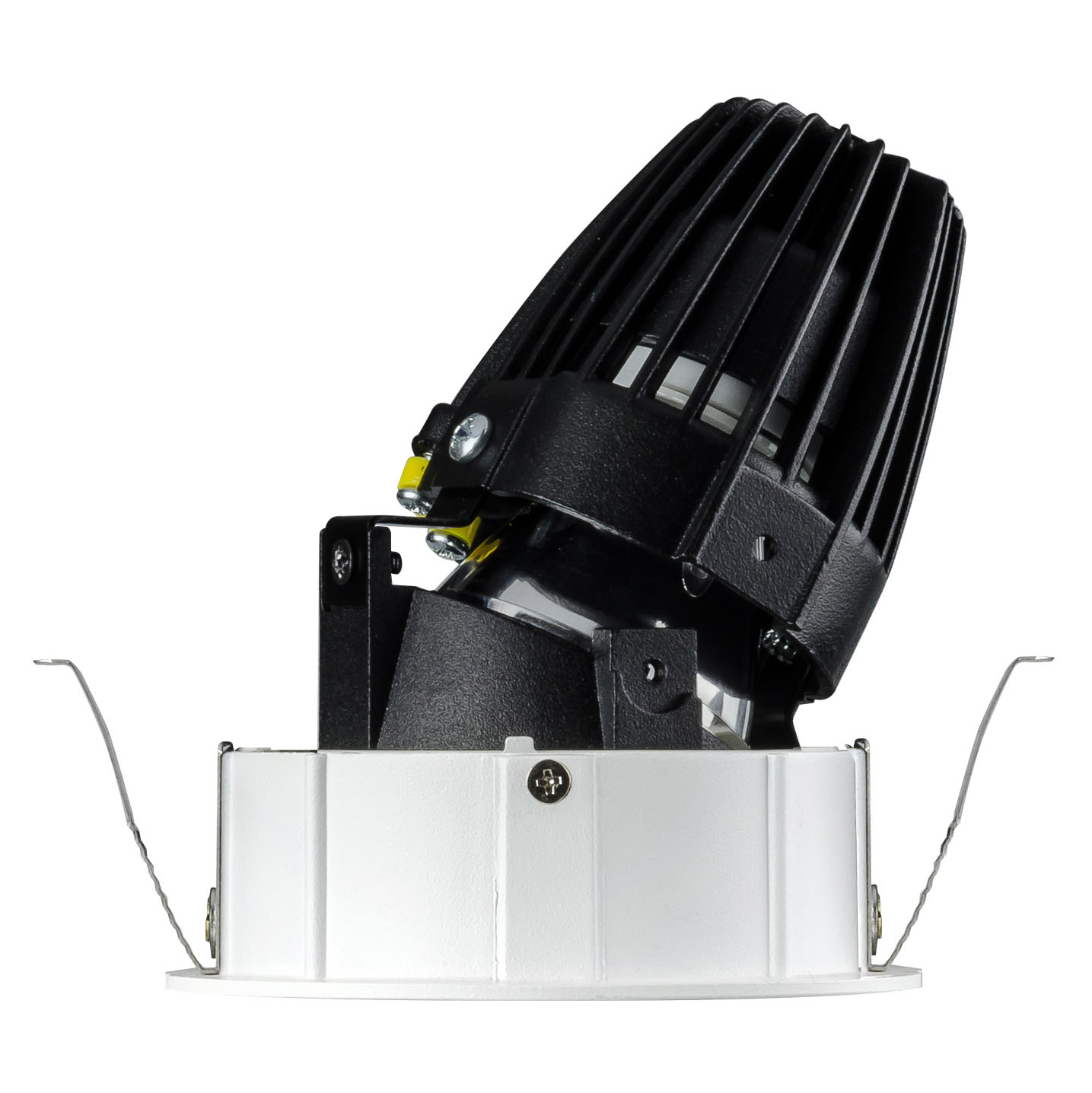

‣ Architectural tiltable wall wash
‣ Discreet minimal bezel, die-cast from pure aluminium
‣ Matt black darklight baffle, developed to minimise glare (white on request)
‣ Fitted with an integral IP44 protective lens as standard
‣ Precision moulded 40° reflector
‣ Tridonic LED engine and driver system
‣ Excellent thermally optimised 24 super-fin die-cast heatsink
‣ Short circuit, overload and temperature protection
‣ Colour temperatures: 2700K, 3000K, 4000K
‣ Efficacy: ≤116 lm/W
‣ Dimensions
- Bezel: ø85mm
- Cut-out: ø81mm
- Height: 105mm
‣ Options:
- Dimming
- Emergency
- Ra90 CRI
- 20° reflector
- Plaster-in
- Wireless
- Colour variations
Please download the data sheet for further information
APPLICATION
Suitable for commercial, residential and retail applications.
