MARGIN LED
IP65 EMERGENCY EXIT LUMINAIRE

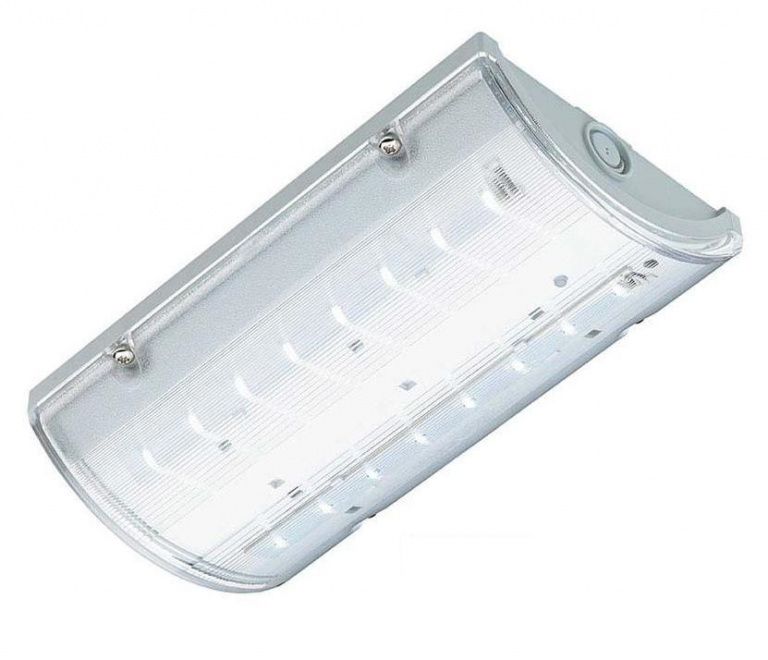

The Margin range offers an attractive, slim, IP rated enclosure suitable for semi-flush or surface mounting.
These luminaires utilise a polycarbonate body and lens with linear prisms providing wide intensity distribution.

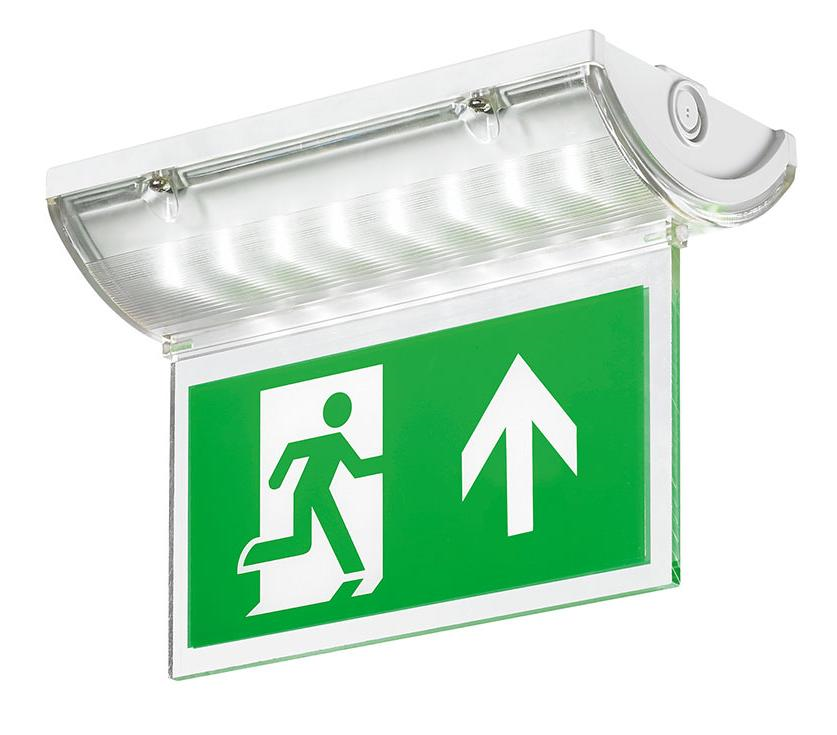

They are also available with an alternative lens which has a slot retaining an injection moulded legend blade.
KEY FEATURES AND SPECIFICATIONS
‣ Light source: 16 x white LED (CRI>80)
‣ Luminaire Lumens: 135lm (without sign legend)
‣ Sign viewing distance: 30m
‣ Construction: White polycarbonate base and lens
‣ Geartray: Hinged white plastic
‣ Compliant with EN60598.2.22
‣ Options:
- Hanging blade exit panel
- DALI
- Self-Test
‣ Cable Entry Drilling points in both ends and back plate
‣ 3 Hour duration
‣ Mains or Maintained Emergency
‣ Dimensions (L x W x H): 240 x 130 x 50mm
‣ 230V AC (standard)
‣ IP65 Rated
Please download the data sheet for further information
APPLICATION
Suitable for a variety of emergency lighting applications.
