INTO R55 LED ZW
LED PENDANT DOWNLIGHT

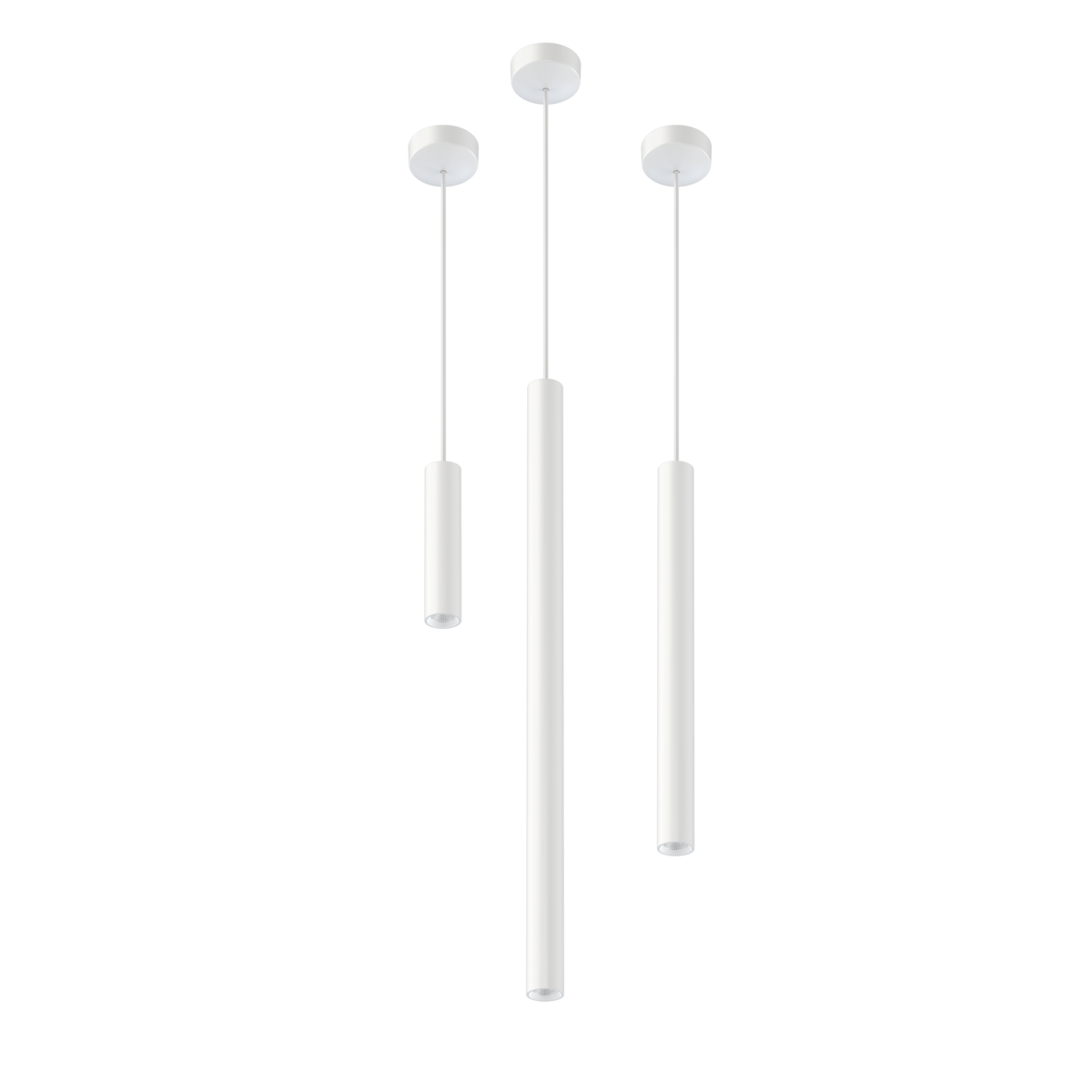

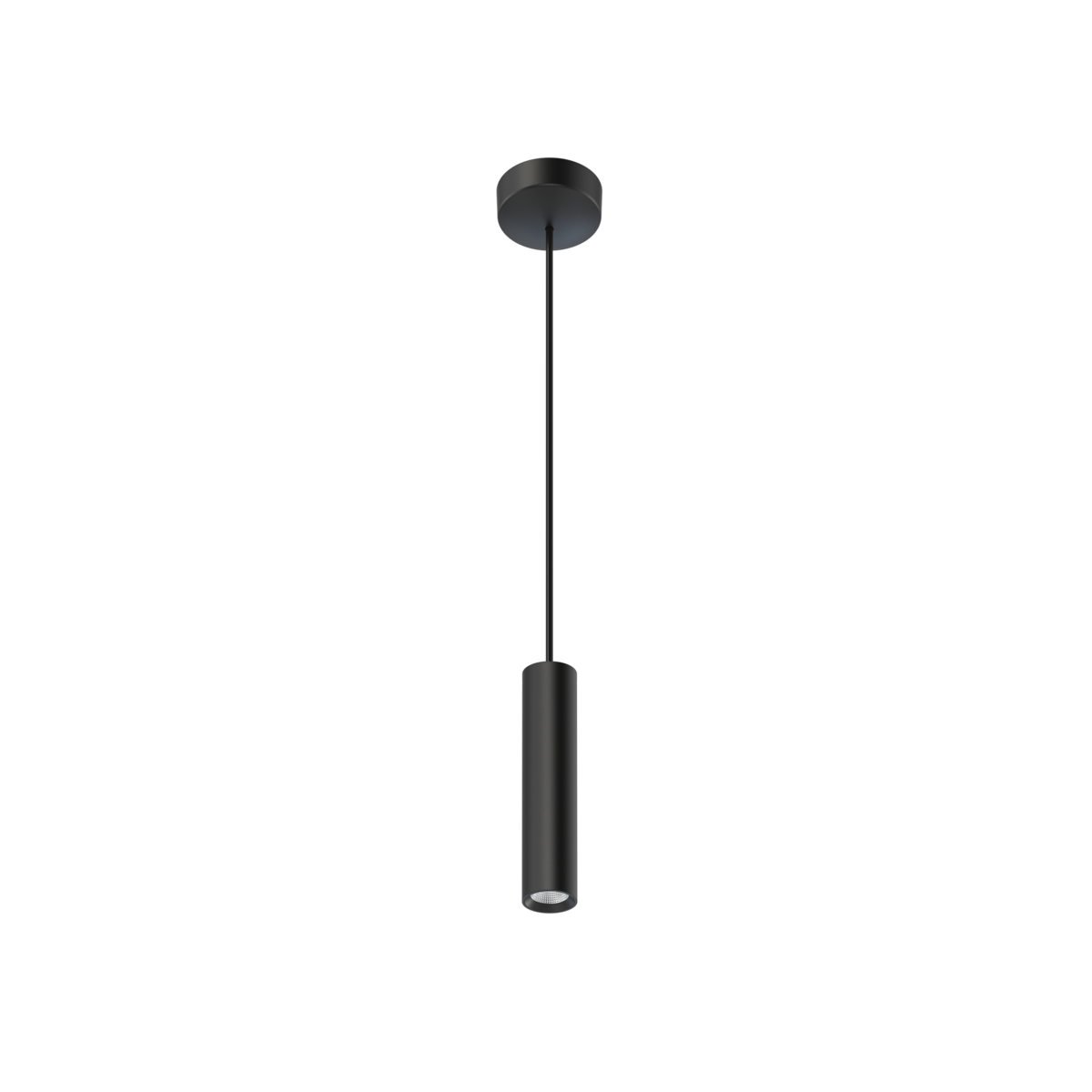

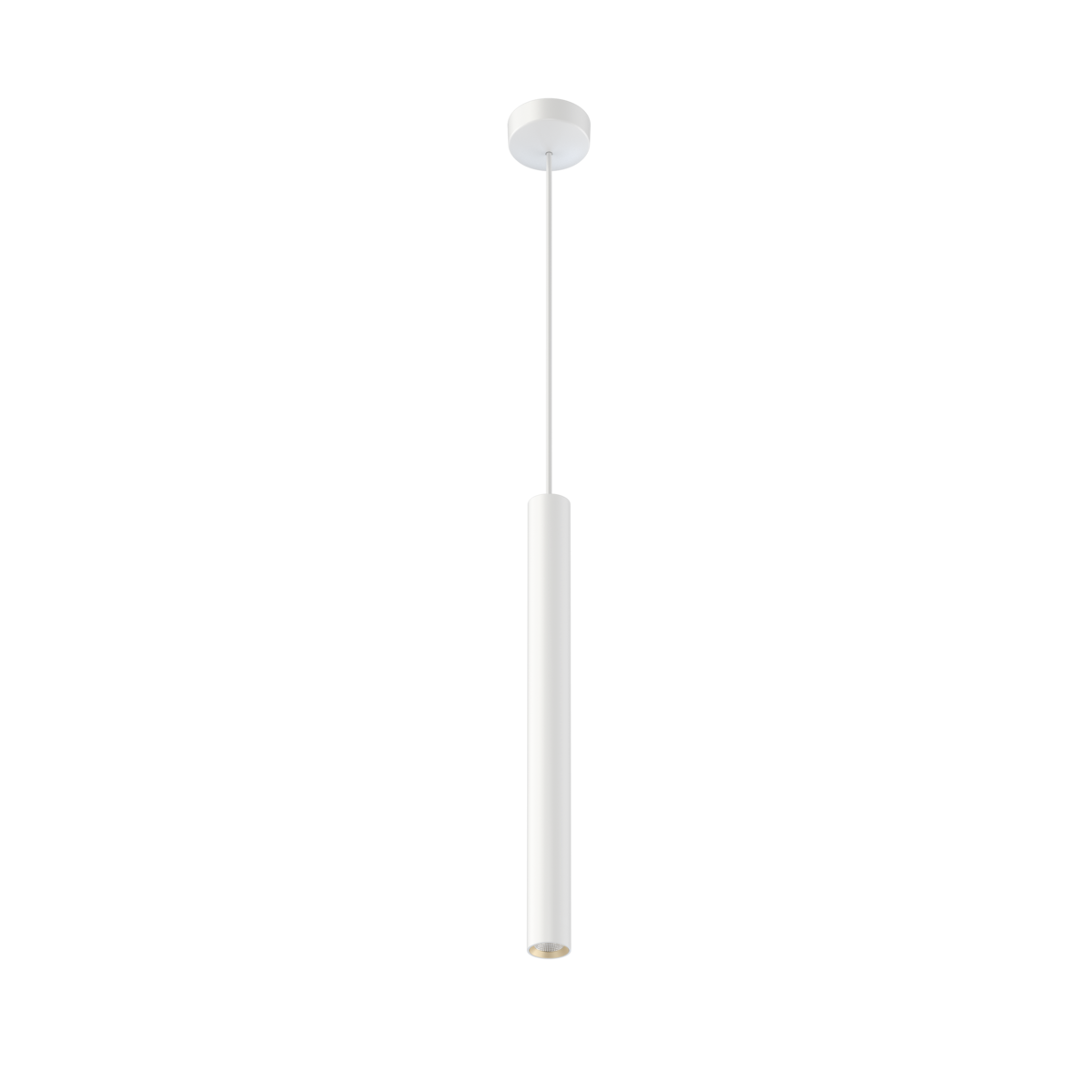

A 45mm diameter, modern, decorative LED suspended pendant luminaire manufactured from extruded aluminium.
Available with three light distribution angles, three body lengths, two body colours and four bezel colours.
These pendant downlights have an efficacy of up to 117 lumens/W, a service lifetime of 60,000 hours, L80, and carry a 5 years warranty.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: suspended, on a cable (1.7m wire included)
‣ Body: aluminum profile
‣ Body colour: white, black
‣ Bezel colour: white, black, silver, gold
‣ Power supply efficiency: 92%
‣ Power supply: 220-240V 50/60Hz
‣ Light source: LED
‣ Type of equipment: ED (DALI on request)
‣ Electrical connection: max 3x0,75 mm² wire
‣ Light distribution: rotationally-symmetric
‣ Way of lighting: direct
‣ Reflector: polished faceted
‣ CRI/Ra: ≥80
‣ Efficacy: ≤117 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Beam angle: 34°, 45°, 60°
‣ Lifetime (L80B10): 60,000 hours
‣ Protection: IP20
‣ Dimensions/Weight:
- 45mm ø x 200mm H x 1700mm D (0.5kg)
- 45mm ø x 500mm H x 1700mm D (0.8kg)
- 45mm ø x 800mm H x 1700mm D (1.0kg)
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a range of commercial and retail applications.
